Differential Scanning Calorimeter

Background

Differential scanning calorimetry (DSC) is a technique used to study what happens to polymers when they're heated. By studying the thermal transitions occurring within the material information is acquired on the nature of the polymer.

Applications include:

  • Melting temperature
  • Glass transition temperature of polymers
  • Crystallinity of polymers
Equipment

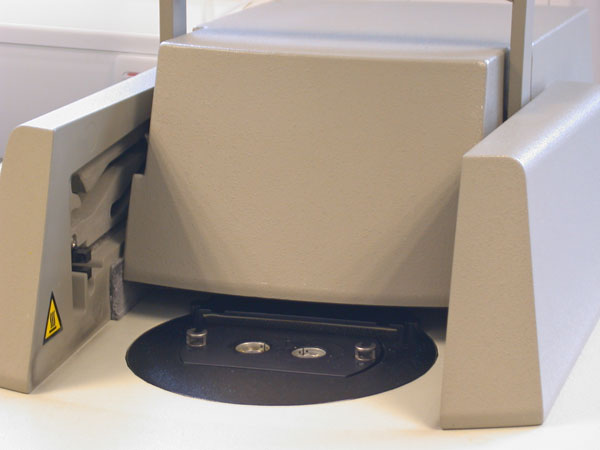

Power Compensated Perkin Elmer DSC 1
Differential Scanning Calorimter


  • Furnace 20 to 600°C
  • Maximum scan rate 500°C/min
  • Calorimetric accuracy: better than ± 1%
  • Calorimetric precision: better than ± 0.1%
  • Temperature Precision: ± 0.1°C
  • Temperature Accuracy: ± 0.1°C
  • Sensitivity 0.1µW
  • Pyris software
Plastic testing

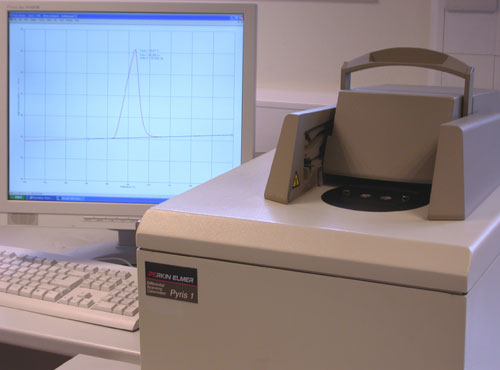

Perkin Elmer DSC 1 Differential Scanning Calorimeter
Standards
D3418-03Standard Test Method for Transition Temperatures of Polymers by Thermal Analysis
D4591-97Standard Test Method for Determining Temperatures and Heats of Transitions of Fluoropolymers by Differential Scanning Calorimetry
E793-01Standard Test Method for Enthalpies of Fusion and Crystallization by Differential Scanning Calorimetry
E794-01Standard Test Method for Melting and Crystallization Temperatures by Thermal Analysis
E928-03Standard Test Method for Determination of Purity by Differential Scanning Calorimetry
E967-03Standard Practice for Temperature Calibration of Differential Scanning Calorimeters and Differential Thermal Analyzers
E968-02Standard Practice for Heat Flow Calibration of Differential Scanning Calorimeters
E1269-05Standard Test Method for Determining Specific Heat Capacity by Differential Scanning Calorimetry
E1356-03Standard Test Method for Assignment of the Glass Transition Temperatures by Differential Scanning Calorimetry
E1363-03Standard Test Method for Temperature Calibration of Thermomechanical Analyzers
E2069-00Standard Test Method for Temperature Calibration on Cooling of Differential Scanning Calorimeters
E2160-04Standard Test Method for Heat of Reaction of Thermally Reactive Materials by Differential Scanning Calorimetry
E2253-03Standard Method for Enthalpy Measurement Validation of Differential Scanning Calorimeters
DSC testing

Please contact us with your enquiry or telephone if you prefer
