Macroscopy

Background

Macroscopic techniques including etching, sulphur printing and fractography can provide important information regarding metallic samples. A range of equipment including digital cameras, light sources and a low power stereo zoom microscope are available to support such investigations.

Equipment
Nikon SMZ800 stereo zoom microscope
  • Zoom: x1 to x6.3
  • Eyepieces: x10
  • Beam splitter with C-mount camera adapter
  • Coaxial episcopic illuminator
  • Maximum sample height: 300mm
  • Maximum sample depth: 300mm
Volpi Intralux 5000-1 Cold Light Source
  • Light source: halogen reflector
  • Constant colour temperature
  • Ring illuminator
  • Filters: red, green, blue, yellow, daylight
Standards
ASTM E340-15Standard Test Method for Macroetching Metals and Alloys
ASTM E381-17Standard Method of Macroetch Testing Steel Bars, Billets, Blooms, and Forgings
ASTM E1180-08(2014)Standard Practice for Preparing Sulfur Prints for Macrostructural Examination
Nikon SMZ800 microscope

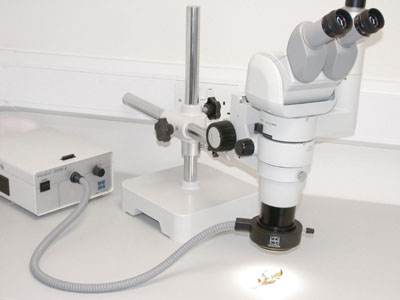

Nikon SMZ800 stereo zoom microscope and Volpi
Intralux 5000-1 cold light source
fractured crankshaft
Fractured Crankshaft
