Peel Adhesion

Description

The ChemInstruments AR-1000 Adhesion/ Release Tester performs adhesion and release tests on pressure sensitive adhesive laminate samples to ASTM, DIN, PSTC, TLMI, FINAT and AFERA standards.

The sample is peeled at a selected speed and at a chosen angle, which is usually 90 or 180°. A load cell measures the peel/release force and this is recorded in the data acquisistion unit. The results are subsequently processed locally or in an external PC. The sensitivity of the test may be adjusted by changing the load cell.

Specification
Speed30 to 3048 cm/min
Test angle90 to 180°
Load accuracy±0.1% load cell range
Data sampling rate400 points/second
Operating temperature0° - 70°C

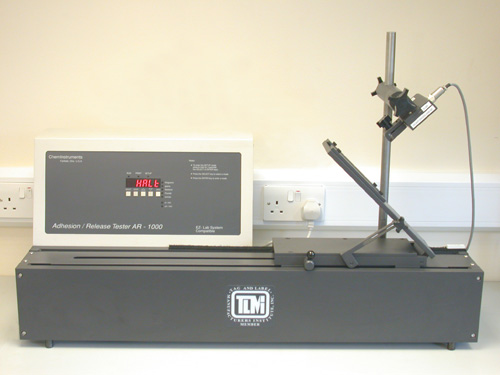

Peel Tester
ChemInstruments AR-1000 Peel Tester
Standards
ASTM D 3330/D3330M-04Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
BS EN 1939:2003Self adhesive tapes. Determination of peel adhesion properties
PSTC 101 (A, B, C, D, E and F)International Standard for Peel Adhesion of Pressure Sensitive Tape
PSTC 4Relative Performance of Release Coatings
TLMI L-IA1180° Peel Adhesion - Face Stock
TLMI L-IA2180° Peel Adhesion - Release Liner
TLMI L-IA3Ramp Velocity High Speed Release
AFERA 5001
(AFREA 4001)
Self Adhesive Tapes - Measurement of Peel Adhesion from Stainless Steel or from its own Backing
FINAT FTM 1Peel adhesion (180°) at 300mm per minute
FINAT FTM 2Peel adhesion (90°) at 300mm per minute
FINAT FTM 3Low speed release force
FINAT FTM 4High speed release force (10 - 300 m per minute)
FINAT FTM 5Resistance to elevated temperatures
FINAT FTM 6Resistance to ultra-violet light
FINAT FTM 10Quality of silicone coated substrates for self-adhesive laminates: release force (300 mm per minute)
FINAT FTM 11Quality of silicone coated substrates for self-adhesive laminates: subsequent adhesion
